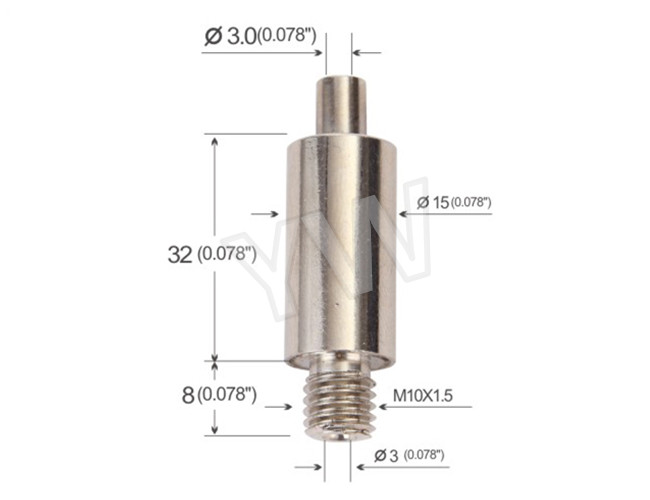

Self Gripping Aircraft Cable Grippers Φ 15 * 32 mm Large Size Wih M10 External Thread
Cable Gripper is the safest, strongest, simplest and most versatile system of its kind on the market
today, we are offering thousands of precision-made parts to fit almost every conceivable application.
The key component, the Self-Locking Cable Gripper, is a unique, self-locking, completely adjustable device, designed to securely lock onto a large range of 7x7 stranded aircraft cables. It requires
no tools to adjust; up or down, down or up - as often as you like.
Description
| 1. Material | Brass |
| 2. Size | Φ15*32mm / Customized |
| 3. For use with Cable | Ø1.5~Ø2.5mm |
| 4. Finishing Color | Nickel/ Customized |
| 5. Application | The Lock Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage.
|
| 6. Safe Working Load | 40KG,depends on the cable diamter work with |
| 7. Advantages | * Safe, reliable and compliant * Time-saving * Simple one hand use without tools * Infinitely adjustable |
The cable grippers are suited for a wide variety of applications,
Such as Lighting Products,Signs,Dispalys, Artwork, Graphics and many other items,
And offer the perfect solution for the suspending system.
Arguably the finest way to suspend fixtures available!
If this is the first time you've worked with 3-ball aircraft cable compression system,
Please read the following carefully.
When feeding cable into the Gripper, always allow it to pass at least 1” beyond the body of the Gripper.
When cutting off excess cable always leave at least 1” of cable showing. Cables may be cut using purpose-built cutters. Cable will not fray unless passed repeatedly through the Gripper mechanism or otherwise abused. To prevent fraying of freshly cut ends, re-solder or apply a drop of super-glue.
Do not feed excess cable into a lighting fixture housing or junction box containing elctrical wiring.
Use only 7×7 or 7×19 uncoated galvanized or stainless steel aircraft cable.
The cable grippers slide up and down the cable for the vertical height adjustment,all tool-free!
They self lock on the cable and offer the perfect solution for the suspension of:
Lighting Products,Signs,Dispalys, Artwork, Graphics, shelving and many other items,
Radically reducing installation time and eliminating human error.
Our cable blockers are extremely user friendly and fast to install.
The cable blocking devices are used in demanding applications, for example in automotive and
hardware industry. Recommended weights for devices vary from 7 to 100 kilograms, so the
stronger cable blockers can hold even heavy loads of lighting equipment. Cable’s diameter
varies from 1,2 to 2,5 millimetres.
You’ll find the most common models of our cable blockers in our catalogue.
Our sales are happy to help you finding the right device for your application.
