Brass Material Lock Cable Grippers With Safety Nut , Adjustable Gripper Hanger
We offers several grippers in different diameters and screw sizes.
They can be repositioned without damaging the cable and no tools are necessary. Just unscrew the head, push and slide it.One hand is sufficient : the grippers are installed wholly without tools and are infinitely adjustable
Cable Grippers are sophisticated in design but simple to use to hang your
pictures or fine art. Here’s how it works:
Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.
To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
The 3-ball gripping mechanism is spring-loaded and allows the gripper to move
freely up the cable. It cannot move down unless the plunger is depressed.
While there is any weight at all on the gripper, the plunger cannot be depressed.
An optional “safety nut” or “safety cap” can be added to completely lock the mechanism
in both directions. The Greater The Weight, The Stronger It Grips.
Description
| 1. Item Name | Cable Grippers Hanger |
| 2. Material | Brass |

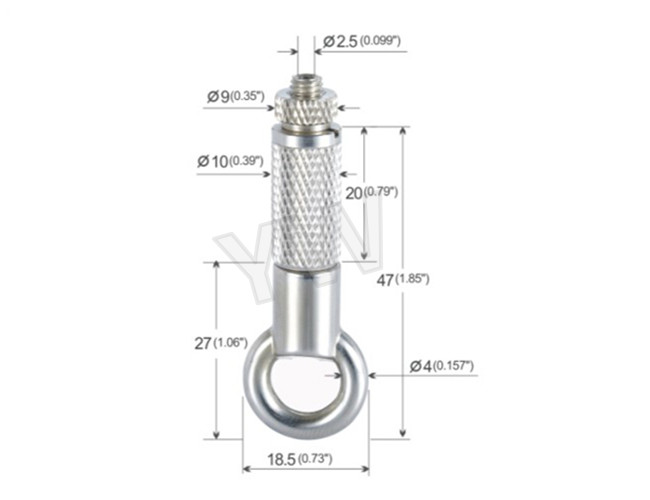

| 3. Size | Φ10*47mm / Customized |
| 4. Thread Size | No thread |
| 5. Plunger Diameter | Φ2.5mm |
| 6. For use with Cable | Ø1.0~Ø2.0mm |
| 7. Finishing Color | Satin,or Customized |
| 8. Application | Grippers can be used in many mounting applications including but not limited to j-box, drop ceiling, masonry and unistrut projects. |
| 9. Safe Working Load | 30KG,depends on the cable diamter work with(For reference only) |
| 10.Advantages | Cable Gripper is the safest, strongest, simplest and most versatile system of its kind on the market today, we are offering thousands of precision-made parts to fit almost every conceivable application. The key component, the Self-Locking Cable Gripper, is a unique, self-locking,completely adjustable device, designed to securely lock onto a large range of 7x7 stranded aircraft cables. It requires no tools to adjust; up or down, down or up - as often as you like. |
Cable Gripper Design
Within each cable gripper is a plunger that a cable slides through. There are three balls that
surround the outside diameter of the cable as it passes through the gripper. When weight is
applied to the gripper when mounted, the tension forces the balls to grab the cable in a pinching movement. In normal operation the more the tension, the more the gripping. Some grippers come
with a safety nut that locks the movement in both directions eliminating the potential for a release
if the plunger is accidentally depressed by an end user.
